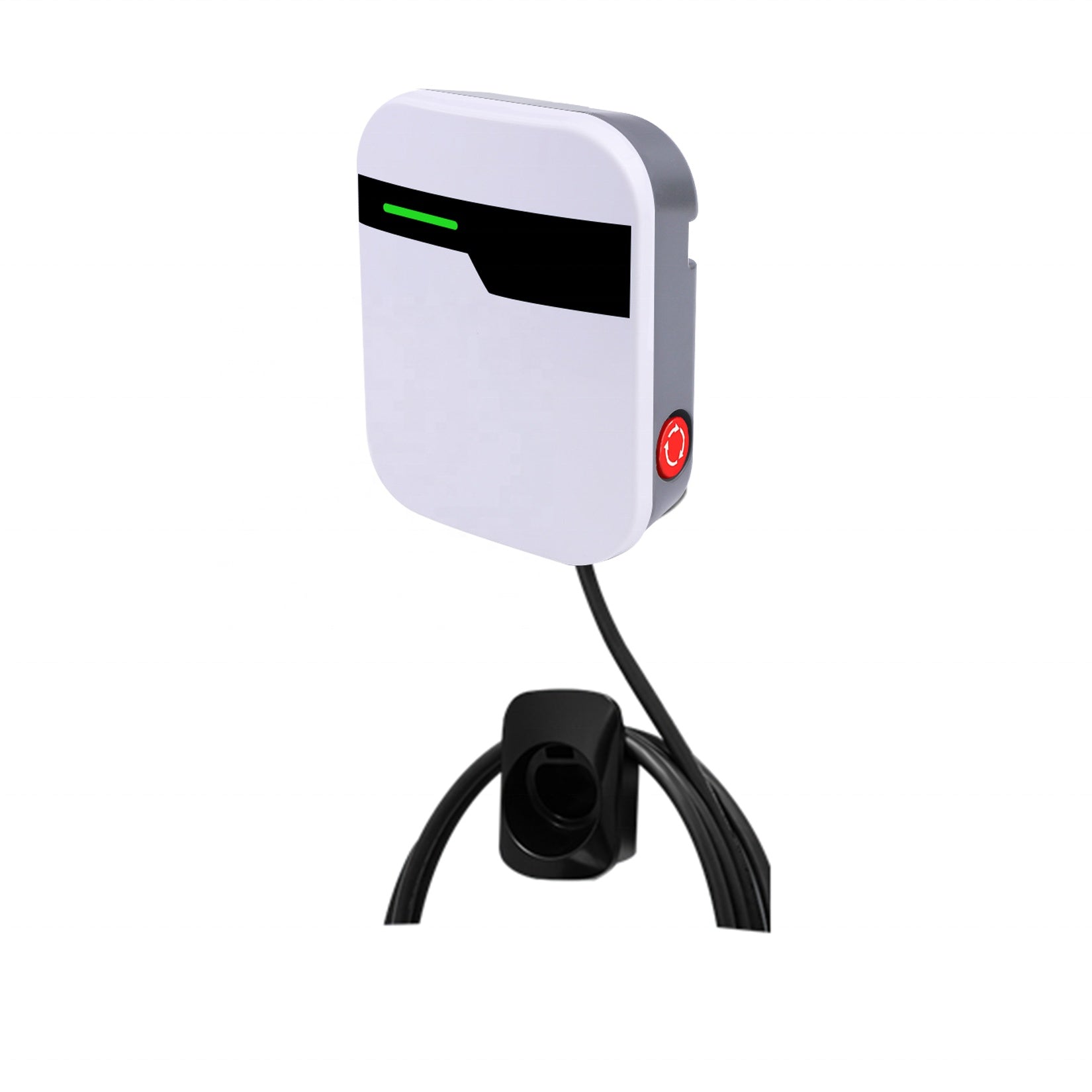

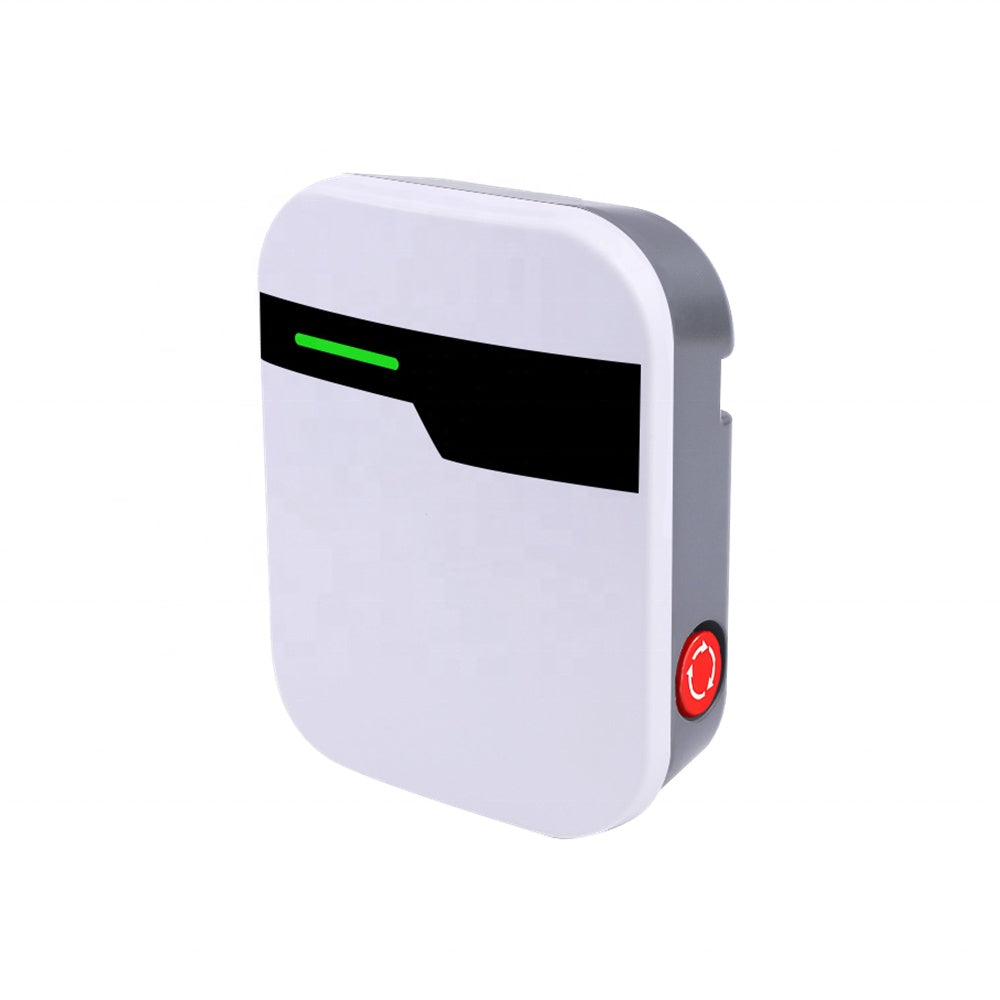

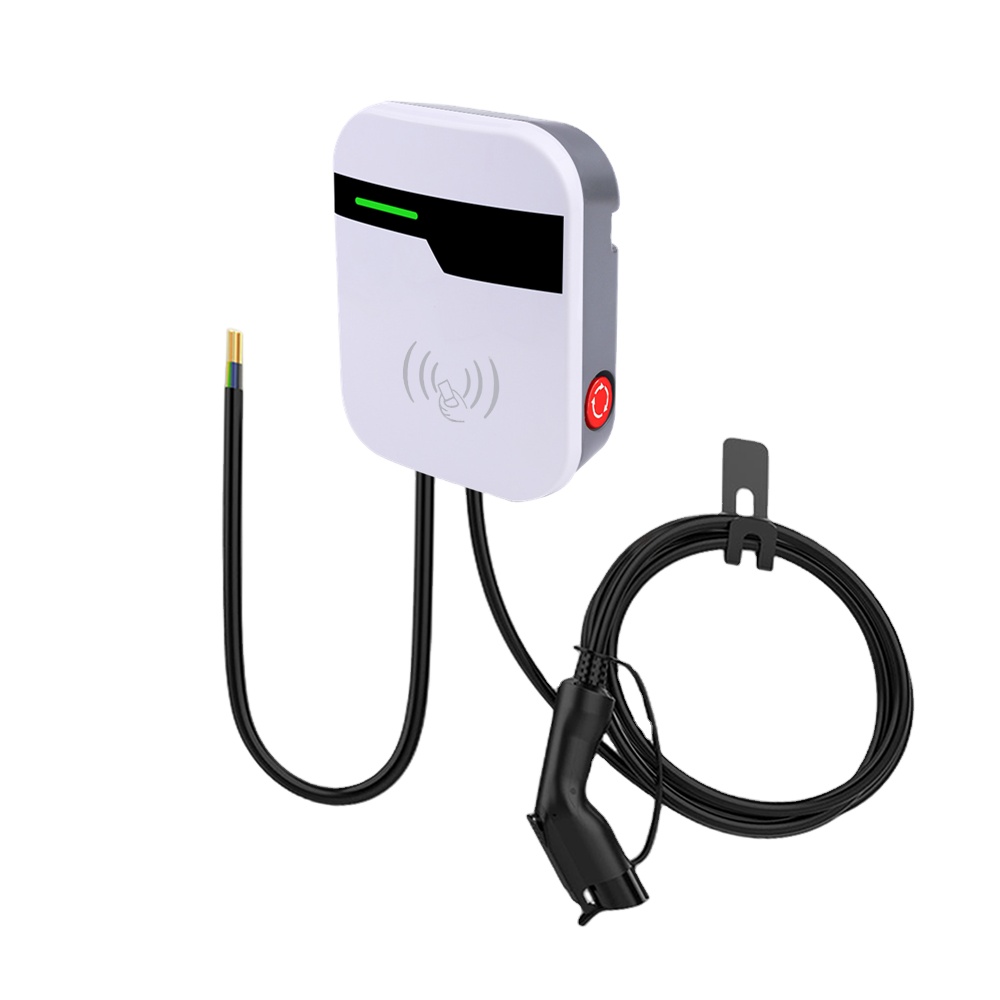

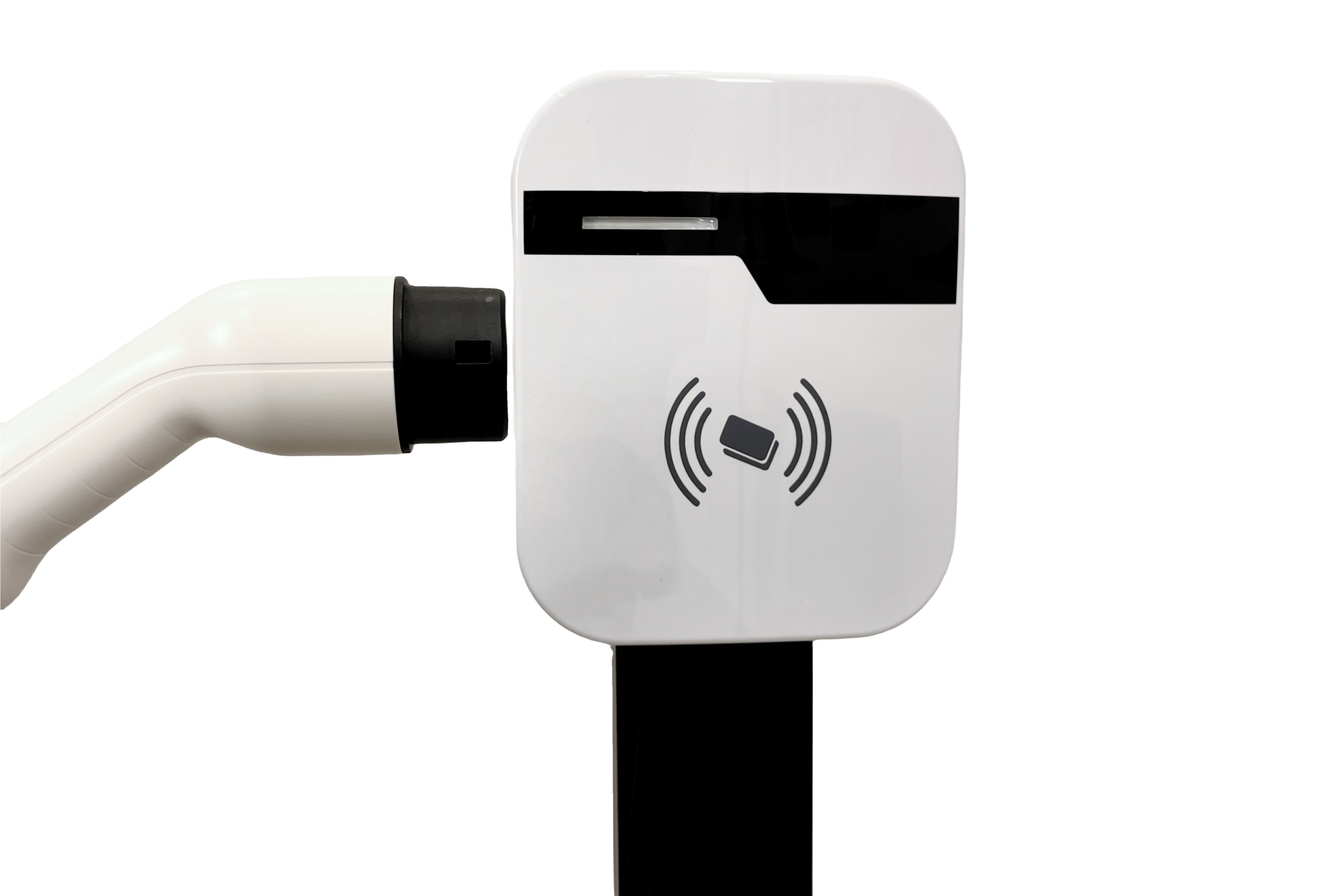

7kW Wall-Mounted Type 2 EV Charger – Smart App & RFID Control

Charge your electric vehicle quickly and safely with this powerful 7kW wall-mounted Type 2 EV charging station. Compatible with most electric vehicles across Europe, this unit offers flexible installation, smart control, and multiple safety features — ideal for home garages, driveways, or commercial parking areas.

✅ Key Features:

• ⚡ Fast 7kW AC Charging – Up to 32A single-phase charging for rapid energy delivery

• Type 2 Connector (IEC 62196-2) – Europe-standard plug, compatible with most EVs

• Smart App Control – Monitor and control charging remotely via the "Smart Life" app (Wi-Fi or 4G supported)

• ️ RFID Access Control – Start/stop charging with included RFID cards for secure usage

• Connectivity Options – Supports Wi-Fi / Bluetooth / optional 4G for remote access

• Weatherproof Design (IP54) – Built to handle outdoor conditions from -30°C to +55°C

• Easy Wall-Mount Installation – Ideal for home, office, or shared EV parking spots

• Dynamic Load Balancing – Prevents overloads by adjusting output automatically (CT sensor required)

• OCPP 1.6J Compatible – Supports open protocols for backend systems

Technical Specifications:

• Input Voltage: 230V (1/N/PE)

• Rated Current: 16A/32A

• Power Output: Max 7kW

• Input Frequency: 50Hz

• Cable Length: 5 meters (Type 2)

• Connectivity: Wi-Fi, Bluetooth, 4G (optional)

• Operating Temp: -30°C to +55°C

• Noise Level: <30 dB

• Dimensions: 23 × 28 × 9 cm

• Mounting: Wall-mounted

• Protection Rating: IP54

Package Includes:

• EV Charger with 5m Type 2 Cable

• RFID Cards

• Mounting Kit

• User Manual

•
